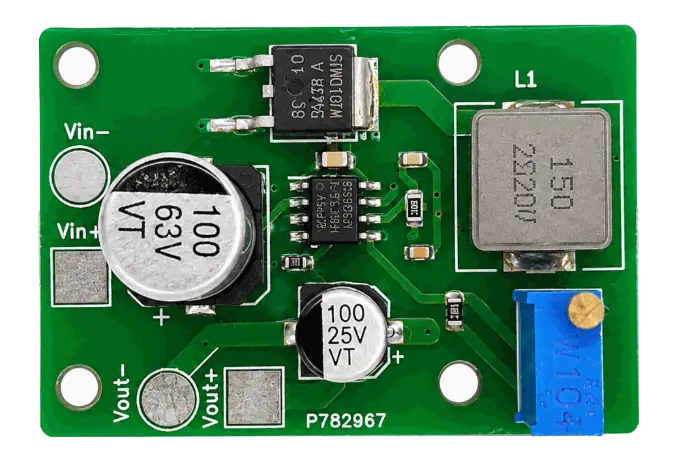

60V To 5V 5A DC-DC Buck Converter

Designed for demanding onboard applications, this compact buck converter delivers a constant, regulated 5V DC output from a wide variable DC input range. Ideal for powering Flight Controllers, GPS modules, cameras, gimbals, servos, and custom payloads.


Available to buy online on BotBhidu.com.   Buy on BotBhidu

Key Performance Metrics

12–60

V DC Input

5

V DC Output

25 W

Rated Output Power

General

Model Name

60 to 5V 5A DC-DC BUCK CONVERTER

Product Type

Non-isolated Step-down (Buck) DC-DC Converter

NON-ISOLATED TYPE

Application

ONBOARD FC, GPS, CAMERA, SERVOS, PAYLOAD

Any application requiring constant 5V DC supply from variable DC input

Electrical Input

Input Voltage Range

12V – 60V DC

Compatible Battery Configuration

3S – 14S

LiPo battery configuration

Under-voltage Lockout (UVLO)

Yes

Over-voltage Lockout / Protection

No

Input Current at Rated Load

Depends on Input Voltage

Will depend on the input voltage supply

Input Capacitance / Filtering

100 µF, 63V

Electrical Output

Output Voltage

5V

May be varied

Output Voltage Accuracy

95%

Rated Continuous Output Current

5A

Peak / Burst Output Current

NA

Rated Output Power

25W

Output Ripple & Noise

0.50%

Load Regulation

95%

Line Regulation

99%

Independent Output Rails

ONE

Performance

Topology

Asynchronous Buck

Switching Frequency

240 kHz

Soft-start Time

2.1 ms

Efficiency at Rated Load

85%

Protection Features

Over-current Protection (OCP)

Yes, 5A

Over-temperature Protection (OTP)

Yes, 176°C

Short-circuit Protection

Yes

Output Over-voltage Protection (OVP)

Yes

Physical

Dimensions

4.5 × 3 × 1 cm

L × W × H

Weight

10 g

Mounting Type

PCB-mount

Input Connector / Wire Gauge

18 AWG

Output Connector / Wire Gauge

18 AWG

Enclosure / Potting

Open PCB

Environmental

Operating Temperature Range

−40°C to 150°C
